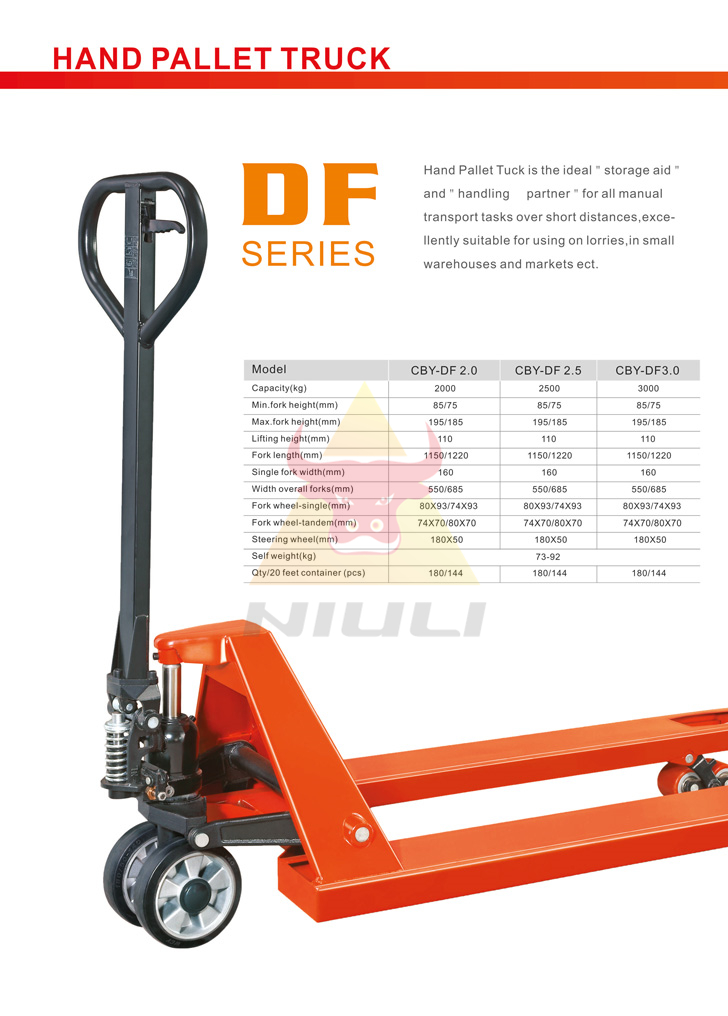

Product Name:DF Hand Pallet Truck

The Hand Parllet Tuck is the ideal " storage aid" and " handling partner " for all manual transport tasks over short distances, excellently suitable for use on lorries , in small warehouses and markets ect .

Product Detail

Model	CBY-DF2.0	CBY-DF2.5	CBY-DF3.0
Capacity(kg)	2000	2500	3000
Min.fork height(mm)	85/75	85/75	85/75
Max.fork height(mm)	195/185	195/185	195/185
Lifting height(mm)	110	110	110
Fork length(mm)	1150/1220	1150/1220	1150/1220
Single fork width(mm)	160	160	160
Width overall forks(mm)	550/685	550/685	550/685
Fork wheel-single(mm)	Φ80×93/Φ74×93	Φ80×93/Φ74×93	Φ80×93/Φ74×93
Fork wheel-tandem(mm)	Φ80×70	Φ80×70	Φ80×70
Steering wheel(mm)	Φ180×50	Φ180×50	Φ180×50
Self weight(kg)	73-92	73-92	73-92
Qty/20 feet container(pcs)	180/144	180/144	180/144
